The short lifespan of a timber crib lock wall

If you manage a school, care home, or community building built in the late 1990s or early 2000s, there’s a good chance you’ve got a different hidden problem waiting at the edges of your site: timber crib retaining walls.

You probably remember the RAAC crisis that made the news headlines over the last couple of years? Once used heavily by builders, it came to light that it had a limited lifespan of only 30 years or so. And you might’ve thought you were in the clear if this timeline issue didn’t affect your buildings…until now.

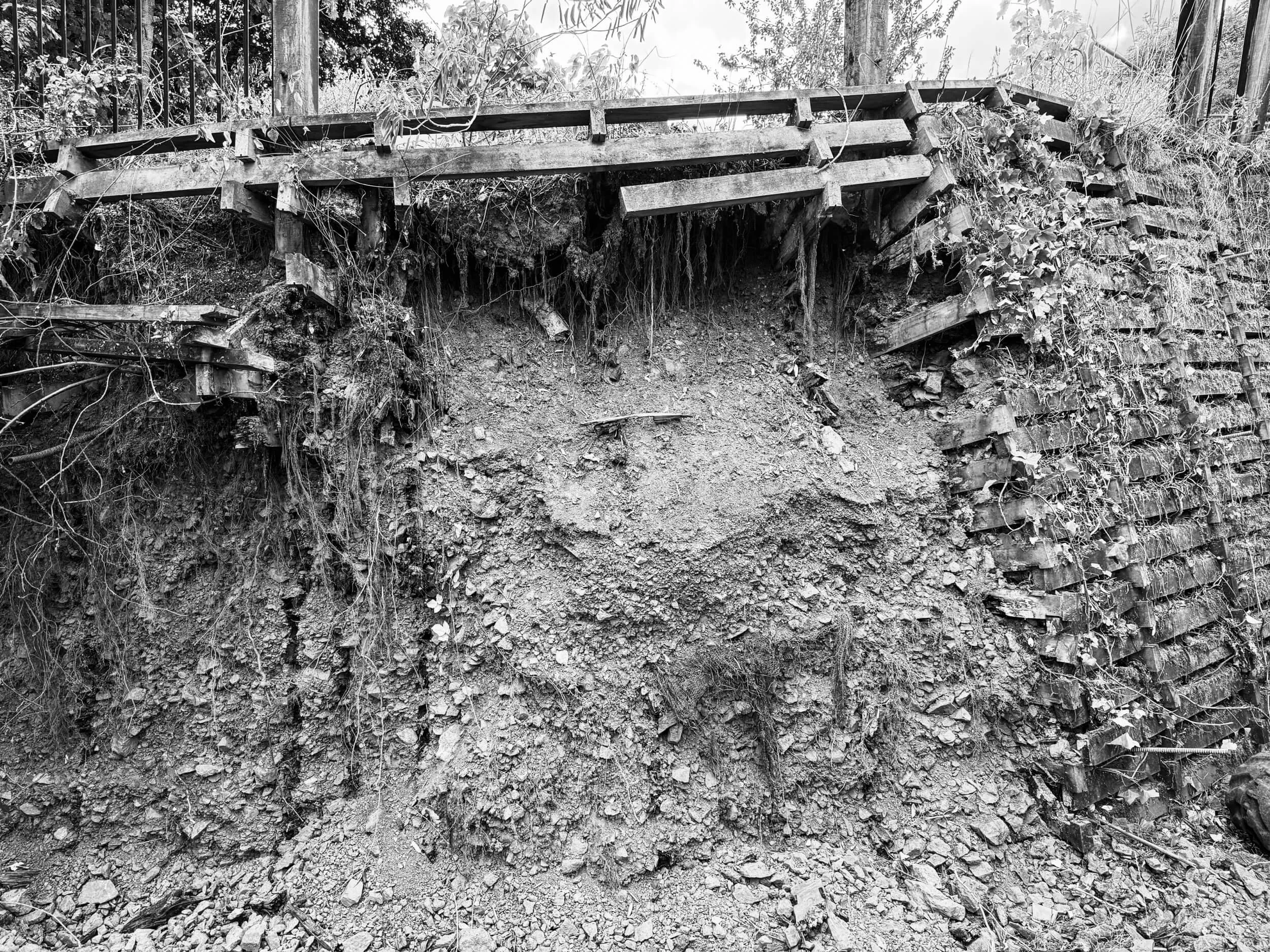

We’re now seeing the first wave of these timber crib walls, installed around 15–20 years ago, reaching the end of their design life. And the results aren’t pretty: rotting timbers, soil slippages, and in some cases structural instability.

For building operators already squeezed by ridiculously tight budgets and site constraints, the question is: what now?

Why timber walls are failing

Back when they were installed, timber crib systems were popular across the UK. They offered a cost-effective way to retain steep banks on tricky sites. Often these were schools, care homes, or new housing developments built on sloping ground.

The thinking at the time was fairly simple: pressure-treated timber would stand up to the job. But UK conditions don’t do timber any favours. Unsurprisingly, putting timber into damp soils in a country with heavy rainfall means the material just doesn’t last as long as initially hoped. Plus this isn’t helped by the rapid growth species used in modern timber, which is not so well-matured, and nor does it have the tight grain patterns of ancient, high-quality timber that stands the test of time.

In engineering, we often talk about “design life”: 25 years, 50 years, or sometimes even longer. But while “25 years” might sound generous on paper, buildings and infrastructure aren’t washing machines or toasters — nobody expects to simply throw them away once the guarantee runs out, do they?

A retaining wall around a school or care home is assumed to be there for the long haul. And yet, here we are, countless structures quietly reaching the end of their service.

Why “rip it out and start again” doesn’t work

Traditionally, when a retaining wall fails you’ve got two main options. You could excavate the old one and rebuild. That involves digging out the wall, cutting back the slope to a safe angle, and constructing a new retaining wall, before backfilling. Or you could put in sheet piling, which looks like driving in large steel sheets all the way along the wall from the top of the slope, several metres deeper than the base of the wall so that you can take the wall away. This holds the ground temporarily while the old wall is replaced.

Both approaches are extremely disruptive, expensive, and in many cases simply impossible.

This is because in the decades since these timber walls were installed, life has moved on. Land above them is now built on, planted, or simply fenced off. That might mean an orchard, someone else’s garden, or just no rights of access for the massive machinery needed to do the job.

In other words, even if you had the budget for it the traditional fix often isn’t feasible.

Treating old timber as “temporary works”

At MESH, we’ve been looking at this challenge differently. Instead of asking “how do we replace this wall?”, we ask: how do we stabilise the ground in place and allow the site to keep operating safely, without removing the old wall?

The way we frame it is to treat the existing timber crib as temporary works. The timbers may be failing, but they still provide some short-term stability while a more sustainable system is installed around them. This gives us options.

Using smarter solutions

We’ve now worked on several of these projects, alongside Anchor Systems (International) Ltd and contractors such as NKS. While no two sites are the same, the approaches generally fall into these three categories:

Soil nailing and mesh systems. You’ve probably seen this type of system being used next to main roads and motorways. It involvesdriving steel anchors into the soil or rock behind the wall.  The whole face is then wrapped in galvanised or stainless steel mesh, and clamped tight with plates. Then we can allow vegetation to regrow, with roots reinforcing the slope naturally over time. The old timber gradually decays, but the anchored mesh system takes over the structural role.

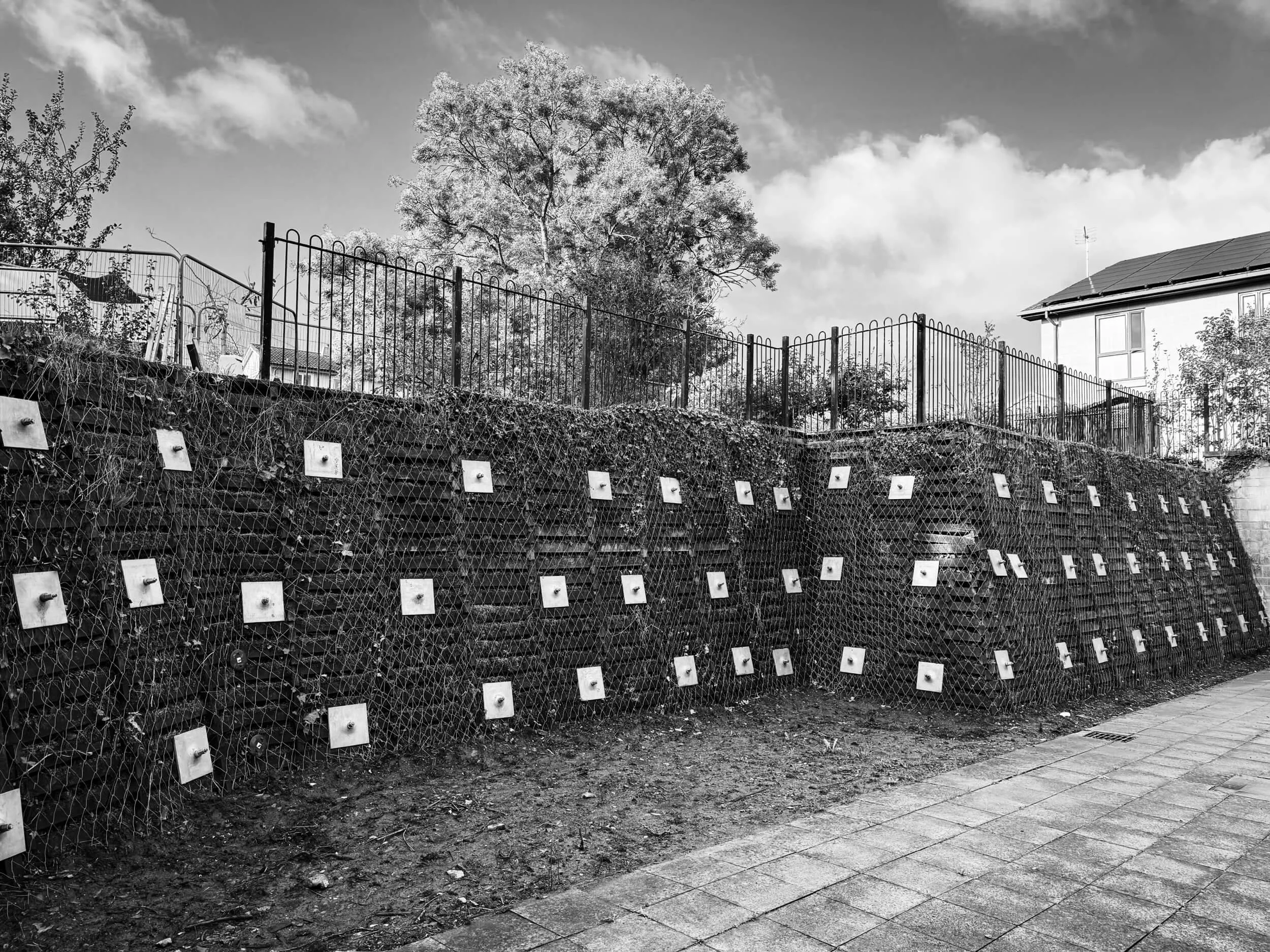

Using a mesh and bolt system allowed us to leave the timber wall in place, limiting disruption.

King posts. This is an economical option because they do not require much excavation work and they are quite slim, so take up little space. It works by steel posts being fixed into the ground in front of the existing wall and pre-cast panels are slotted between the posts to form a new, permanent retaining wall. The old timber crib is left in place to decompose behind.

Gabion baskets. These are used when there’s a little extra space in front of the wall. In layman’s terms, these baskets are large wire cages placed in front of the old wall and filled with stone. The weight of the stone gives the wall mass that resists the forces of the retained earth, so it provides stability without the need to disturb land above the wall.

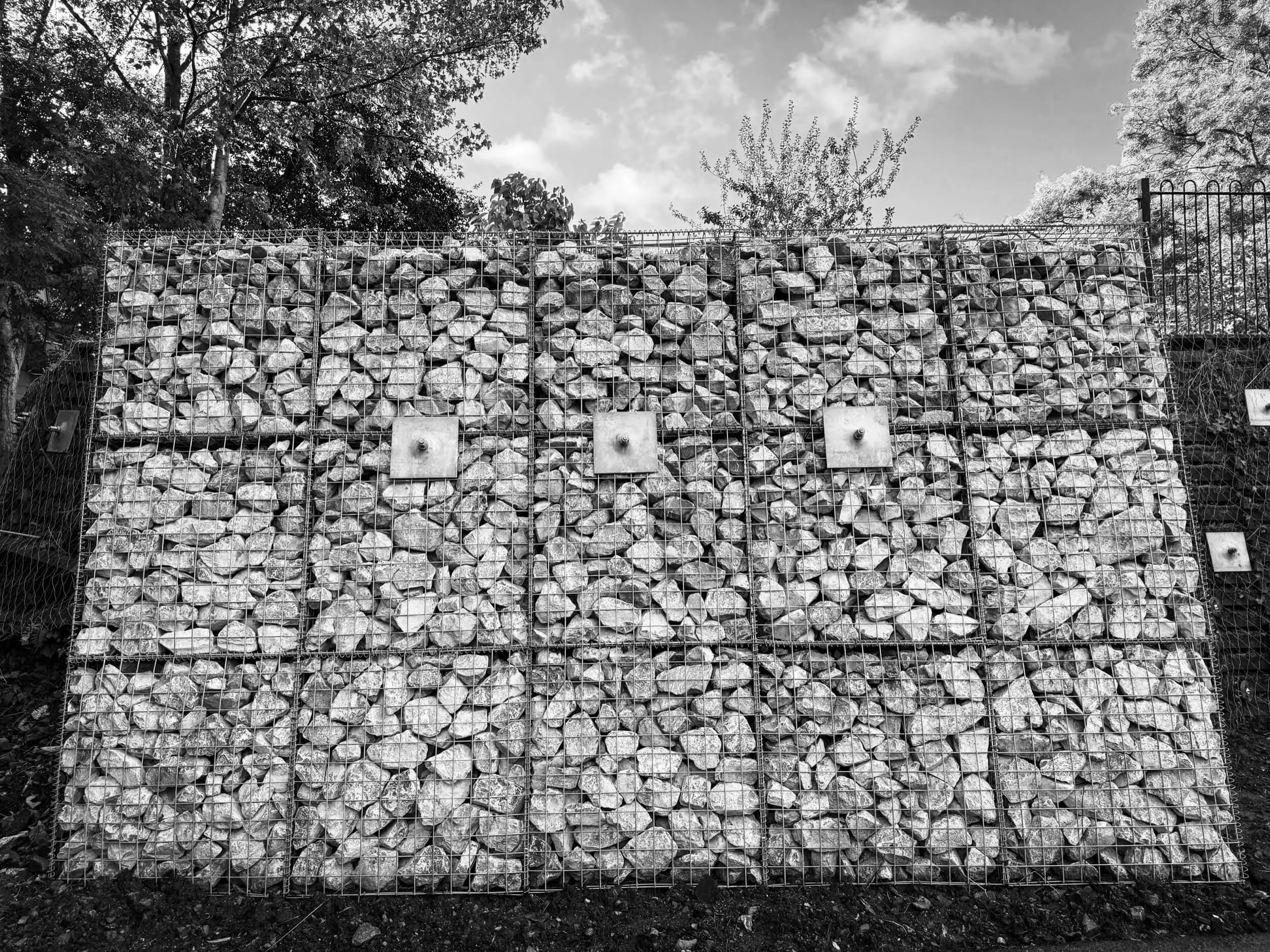

Gabion baskets were a great solution for fixing this section of failing timber crib wall.

Each option has its place, depending on access, site conditions, and client priorities. The key is that none of them require wholesale demolition of the old timber crib walls.

Working with, not against, nature

One of the advantages of the soil nail and mesh approach is that it uses natural processes to do some of the heavy lifting. Once vegetation regrows over the stabilised wall, plant roots interlock with the soil, filling any gaps and adding another layer of resilience.

In effect, you’re turning what started as a liability into a self-sustaining, green solution, one that blends back into the landscape while quietly doing its job. And you know we love a sustainable solution here at MESH.

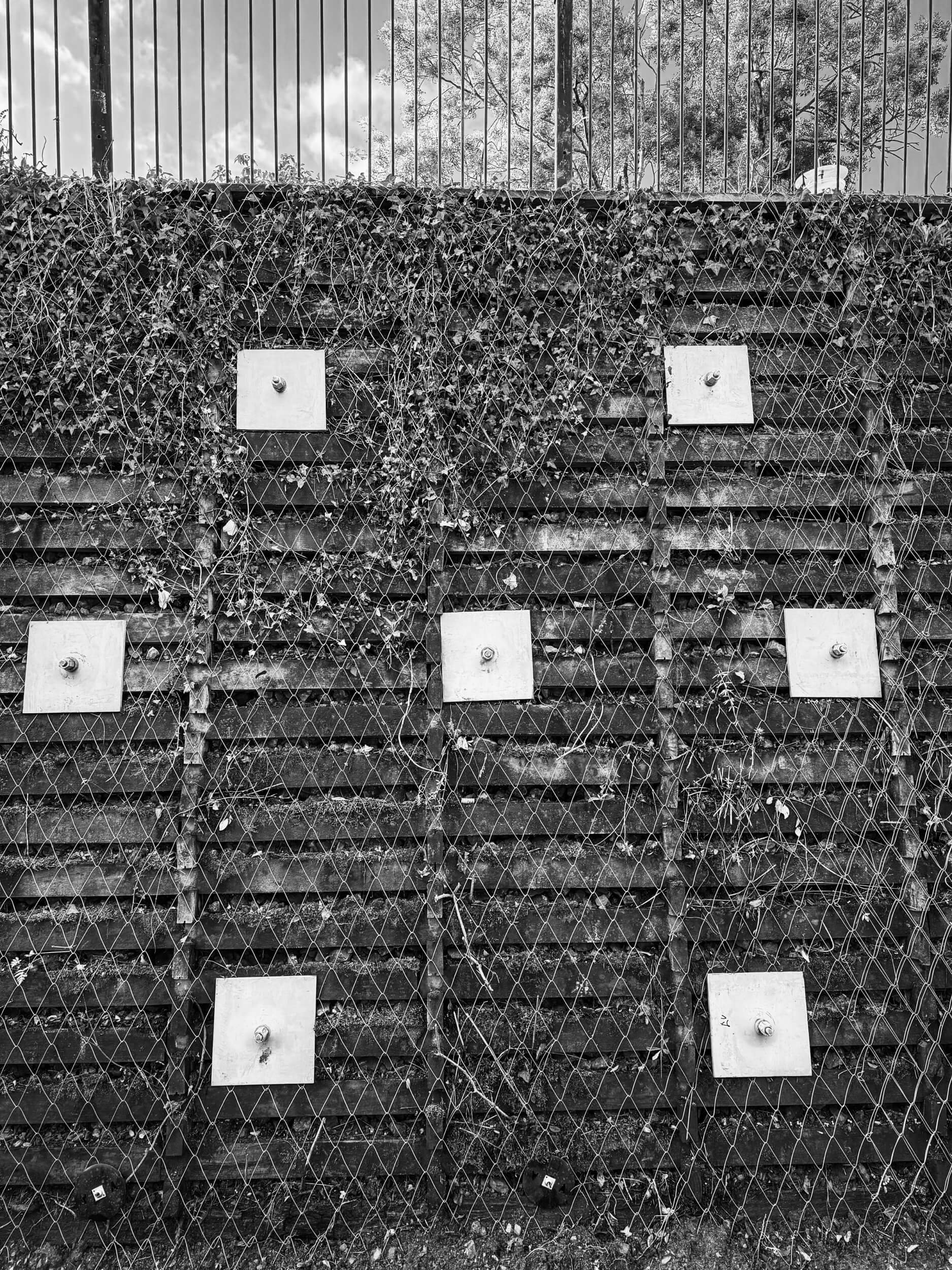

Using mesh and wall bolts allows us to leave the timber crib in place and let nature fill in the gaps to build further resilience

Why this matters

We’re now on our third timber crib wall stabilisation project, and contractors tell us they’re seeing the same issues nationwide. The timing makes sense: walls installed in the early 2000s are all reaching the same end of their design life.

That means schools, care homes, housing associations, and local authorities across the UK are facing the same problem at once. And unlike some other building materials, modern timber doesn’t fail gracefully…once rot sets in, it accelerates quickly.

For operators under pressure to keep facilities open, functioning and safe, the ability to stabilise in place rather than rebuild from scratch could make the difference between a manageable project and an impossible one.

Engineering that adapts

At MESH, we believe the best engineering isn’t always about building something new and shiny. A lot of the time it’s actually about adapting intelligently to what already exists — using ground engineering techniques in innovative ways to solve problems that didn’t exist when these walls were first built.

Timber cribs served their purpose, but their time is up. The challenge now is making sure they don’t become a widespread safety and financial headache like RAAC. As we’ve described here, with the right stabilisation approach they don’t have to.

If you’re responsible for a building with timber crib retaining walls and want to understand your options, get in touch with us today.
